Capture your microphones and instruments and start recording audio directly to your computer with EVO 4’s intuitive feature set. Combining leading tech specs with incredible performance and sound quality, EVO 4 is the perfect interface for beginners and pros alike.

Watch the video  >

Made for you



Made for the smart creative, EVO 4 will deliver a powerful recording solution no matter your artform.

Made for

• Musicians
• Artists
• Podcasters
• Streamers
• Beatmakers
• Producers
• Creatives

Capture creativity fast

Whether recording your latest track, producing a beat, or creating a podcast, get your ideas down fast with EVO 4’s advanced and versatile feature set.

Unrivalled audio performance



Building on Audient’s 20+ years of audio design experience, EVO 4 gives you unrivalled audio quality on your desktop.

Gain Range

Mic Pre EIN

Dynamic Range

The Features



Hover to see

Phantom Power



Give your microphones the power they need with true and switchable +48 over bus power.

Channels 1 + 2



Control the level of both microphone inputs, link to Smartgain or hold each button to mute.

Monitor Mix + Monitor Pan



Blend between your outputs and inputs - ideal for minimising latency when recording.



Use Monitor Pan to pan your inputs left or right to create the ideal headphone balance.

Smartgain



Automatically set the levels of one or both of your microphones.

Volume Button



Set the level of your speakers or headphones.

The professional sound



EVO 4’s innovative technical design ensures you will get professional quality recordings from the start.

2 x EVO Preamps



Get the most from your microphones with the clean, warm and accurate EVO preamps – offering 58dB of gain range.

High Performance Converters



Hear your recordings more accurately than ever with 113dB of dynamic range.

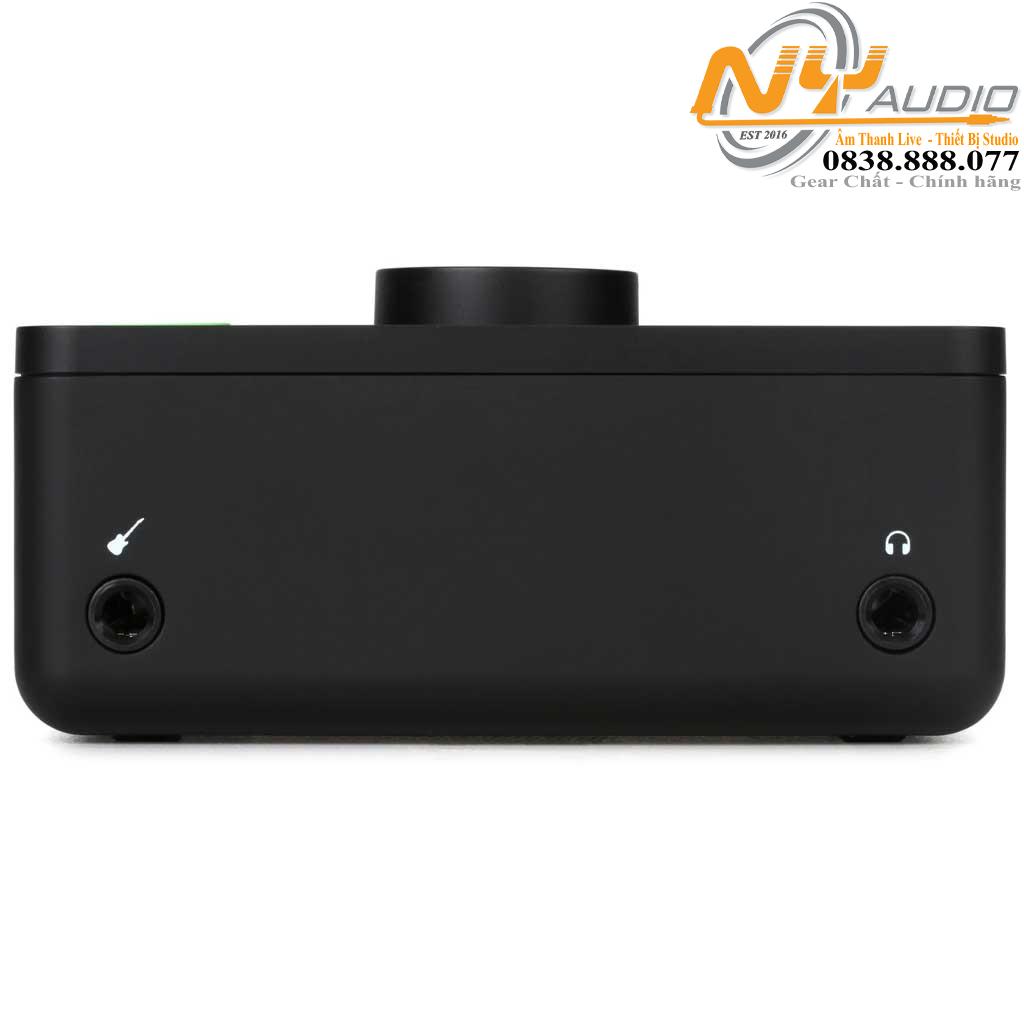

Instrument Input



Plug your guitar or bass straight in through the JFET instrument input and start recording instantly.

Smartgain Mode

Work smarter not harder



Make sure you capture everything perfectly with Smartgain mode. Start playing or singing and Smartgain mode will automatically set the level of your microphones. You can even perfectly match and adjust gain to both channels simultaneously.



Learn more >

Set gain

correctly

Avoid clipping

+ distortion

Get better

recordings

Work

independently

Powerful

Control

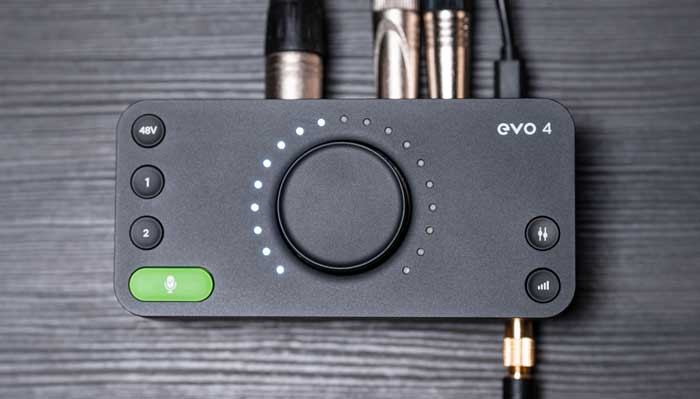

Smart touchpoints



Control your speakers, headphones and channels all from one knob.

Switchable +48v



Individually switch phantom power on/off for each channel and give your microphones the power they need to perform.

Monitor Mix



Make effortless recordings with ultra-low latency monitoring.

Software Control

Set levels and activate features from your computer*



*with compatible software

SmartMuting

Connecting a set of headphones to the headphone port will automatically mute your monitors, making switching between loudspeaker monitoring and headphone monitoring quick and seamless.

Learn more >

Record

Get the professional sound

Collaborate

Work with friends

Create

Become the next big thing

Free software



Compatible with all major audio software and plugins, EVO 4 comes bundled with a collection of professional software, giving you everything you need to start recording.



Learn more  >

Work anywhere



Plug in and power EVO 4 directly from your computer via USB and start recording on the go, whenever inspiration strikes.

Audio Loop-back



Audio Loop-back enables you to record your computer audio at the same time as your microphones. Ideal for podcasters and streamers.

Learn more

•

  Record your computers audio

•

  Record guest Skype/video calls

•

  Record gaming audio

Design



Minimalist layout. Innovative Engineering. Modern aesthetics. EVO 4 has been designed to last and look at home on your desktop.

Features

• 2 x EVO Mic Pres

  Designed to sound clean, detailed and accurate

• Class Leading Converters

  AKM converters (AD/DA)

• Smartgain

  Dial in your channels automatically

• Smart Touchpoints

  Intuitive and fast control at your fingertips

• JFET Instrument Input

  Plug in guitars, basses, keyboards and more

• Speaker Outputs

  Plug in your speakers

• Headphone Output

  High performance headphone output

• Platform Compatible

  Compatible with Mac, Windows and iOS

• Monitor Mix

  Ultra-low latency when recording

• Monitor Pan

  Create better headphone mixes

• Audio Loop-back

  Record your computer audio simultaneously

• USB2.0 Bus Powered

  Power from your computer

• Phantom Power

  True Bus Powered +48v

• DAW Controlled Mic Pres

  Set levels using compatible software

• 24bit / 96kHz

  Stunning audio quality

• Free Software + Plugins

  All you need to start

Specifications

Microphone Preamplifier

Mic Gain Range:	58dB
Line Gain Range:	58dB (-10dB pad)
Phantom Power:	48v +/-4v @ 10mA/Channel
Mic EIN:	<-128dBu
CMRR:	>85dB @ 1kHz
Maximum Input Level:	+16dBu
Input Impedance (Mic):	>3kΩ Balanced
Input Impedance (Line):	>10kΩ Balanced
Frequency Response:	+/-0.5dB 10Hz to 40kHz
Crosstalk:	<-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz):	<0.0015%
SNR:	100dB
XLR:	Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I

D.I Gain Range:	58 dB
Maximum Input Level:	+10dBu
Input Impedance:	1MegΩ Unbalanced
Frequency Response	+/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz):	<0.3%
SNR:	100dB
1/4” Jack:	TIP (Hot) & SLEEVE (Shield)

ADC Inputs

Digital Reference Level:	0dBFS = +8dBu
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	-105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):	<0.001%
Dynamic Range:	113dB A-weighted

DAC Outputs

Maximum Output Level:	+11dBu
Digital Reference Level:	0dBFS = +11dBu
Output Impedance:	<100Ω Balanced
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	<-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):	<0.0015%
Dynamic Range:	113dB A-weighted
1/4” Jack:	TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output

Output Impedance:	<50Ω
Frequency Response:	+/-0.5dB 10Hz to Fs/2
Crosstalk:	-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):	<0.0015%
Dynamic Range:	113dB A-weighted
Max Level Into 30ohms:	+0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms:	+4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms:	+10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack:	TIP (Left), RING (Right) & SLEEVE (Shield)

DSP Mixer Roundtrip Latency:

(in to out)

44.1 kHz	0.594ms
48.0 kHz	0.552ms
88.2 kHz	0.302ms
96.0 kHz	0.281ms

DAW Playback Latency

@ 32 Sample Buffer for Software Instrument Playback

44.1 kHz	~2.5ms
96.0 kHz	~2ms

DAW Roundtrip Software Monitoring Latency

@ 32 Sample Buffer (in to out)

44.1 kHz	5ms
96.0 kHz	4.1ms

Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.

USB 2.0 High Speed

No. Of Input Channels	2 Analogue
No. Of Output Channels	2 Digital
Connector:	USB Type-C
Included Cables:	1m USB 2.0 Type-C to USB Type-A

Weight & Dimensions

Weights:	Unit:	360g
	Packaged:	600g
Dimensions:	Unit:	140mm (w) x 67mm (h) x 67mm (d)
	Packaged:	172mm (w) x 88mm (h) x 97.5mm (d)
